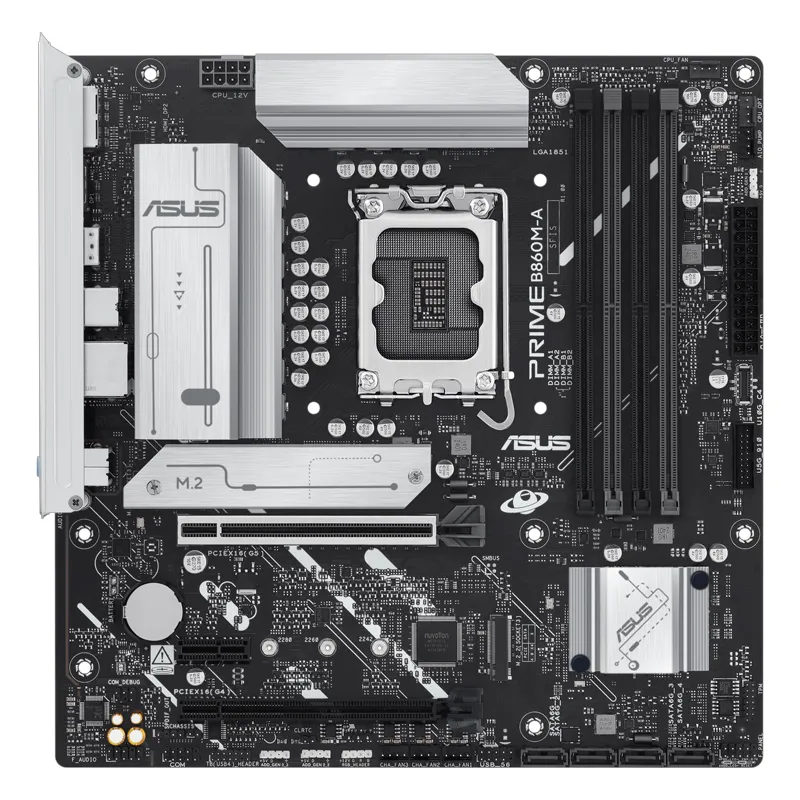

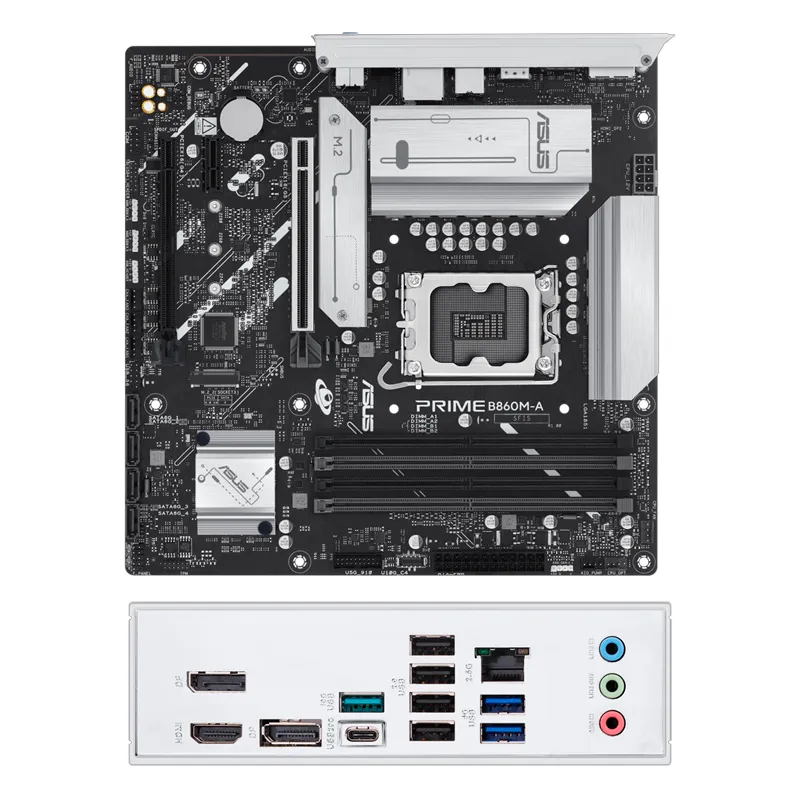

Motherboard Asus Prime B860M-A, Chipset Intel B860, Lga 1851, Hdmi, Dp, Matx
RESEÑAS PARA IDEB TECH
| MARCA | ASUS | |
| MODELO | PRIME B860M-A | |
| CHIPSET | INTEL B860 | |
| TIPO DE SOCKET | LGA1851 INTEL | |
| PROCESADORES | INTEL COMPATIBLE | Procesador Core Ultra 9 S1851 – Series 2
Procesador Core Ultra 7 S1851 – Series 2
Procesador Core Ultra 5 S1851 – Series 2
Procesador Core Ultra 3 S1851 – Series 2 | |
| MEMORIAS RAM | COMPATIBLES | Memoria RAM DDR5 8200 MHz PC5-65600
Memoria RAM DDR5 7600 MHz PC5-60800
Memoria RAM DDR5 7200 MHz PC5-57600
Memoria RAM DDR5 6800 MHz PC5-54400
Memoria RAM DDR5 6400 MHz PC5-51200
Memoria RAM DDR5 6000 MHz PC5-48000
Memoria RAM DDR5 5600 MHz PC5-44800
Memoria RAM DDR5 5200 MHz PC5-41600
Memoria RAM DDR5 4800 MHz PC5-38400 | | NUMERO DE SOCKETS DIMM | 4 | | EXPANSION MAXIMA EN GB | 192 | | TECNOLOGIA | Intel XMP
Dual Channel | | TIPO DE RAM | DDR5 | |
| VIDEO | Revisar caracteristicas del video del procesador. | |
| SONIDO | TECNOLOGIA | Surround Sound High Definition Audio | | CHIPSET | Realtek Audio Codec | | CANALES | 7.1 | |
| CONECTIVIDAD | ETHERNET | CHIPSET | Realtek 2.5Gb | | VELOCIDAD | 100 Mbps
1000 Mbps
2500 Mbps | |
| ALMACENAMIENTO SERIAL ATA | NUMERO DE PUERTOS | 4 | | VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s | | RAID SATA | RAID 10
RAID 5
RAID 1
RAID 0 | |
| ALMACENAMIENTO M.2 | NUMERO TOTAL DE SLOTS M.2 KEY M | 2 | | M.2 CPU | 1 x PCIe 5.0 x4 tipos | 2242
2260
2280 | | M.2 CHIPSET | 1 x PCIe 4.0 x4 tipos | 2242
2260
2280 | |
| SLOTS DE EXPANSION | PCI Express CPU | PCI Express x16 slot, PCIe 5.0 modo x16 | 1 | | PCI Express CHIPSET | PCI Express x16 slot, PCIe 4.0 modo x4 | 1 | | PCI Express x1 slot, PCIe 4.0 | 1 | |
| PUERTOS INTERNOS | FRONT PANEL AUDIO HEADER | 1 | | USB 3.2 GEN 2 TIPO-C HEADER | 1 | | USB 3.2 GEN 1 HEADER | 2 | | USB 2.0 HEADER | 2 | |

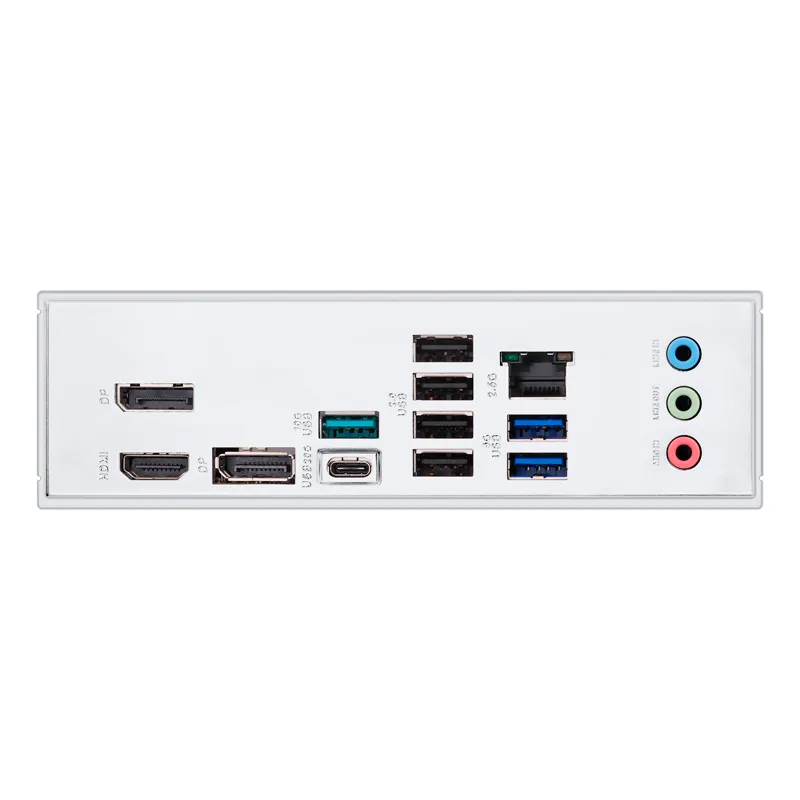

| PUERTOS BACK PANEL | USB 3.2 GEN 2X2 TIPO-C | 1 | | USB 3.2 GEN 2 TIPO-A | 1 | | USB 3.2 GEN 1 TIPO-A | 2 | | USB 2.0 TIPO-A | 4 | | HDMI | 1 | | DISPLAYPORT | 2 | | RJ-45 | 1 | | AUDIO JACKS | 3 | |
| BIOS | AMI BIOS UEFI | |
| FACTOR DE FORMA Y DIMENSIONES | FACTOR DE FORMA | Micro-ATX | | DIMENSIONES | 24.4 cm x 24.4 cm | |
| PRESENTACION | CAJA | |
| CONECTORES FUENTE POWER | 1 x 24-pin ATX Main Power | 1 | | 1 x 8-pin ATX 12V power | 1 | |
|
|
(*) El precio puede variar dependiendo al
método de pago.
Soporta Procesadores De Intel Core Ultra Processors Series 2, 4 X Ranuras De Memoria Ddr5 / Maximo De 192Gb, Almacenamiento 2 X M.2 Pcie / 4 X Sata 6Gb/S, 7.1-Channel Audio Hd, 1 X Realtek 2.5Gbps Rj-45, Formato Matx.
Marca:
AsusNúmero de Parte: PRIME B860M-A
Tipo de Producto: Componente
Producto: (Nv) Nuevo
Garantía: 12 Meses
